NFPA20 UL FM End Suction Fire Pump For Hospital

Name: NFPA20 UL FM End Suction Fire Pump For Hospital
Brand: NM FIRE
Price: 1 USD

China NFPA20 UL FM End Suction Fire Pump For Hospital wholesale

Brand Name : NM FIRE

Model Number : End suction

Certification : UL /FM/Non-listed/NFPA20

Place of Origin : China

MOQ : 1set

Price : Negotiation

Payment Terms : L/C, T/T

Delivery Time : 60 Days

Packaging Details : Export Packing

Standards : NFPA20, UL, FM Non-listed

UL Performance Ranges : Q: 100-750GPM H:70-152PSI

FM Performance Ranges : Q: 100-750GPM H:70-152PSI

Color : Red

Controller : Tornatech (UL/FM)

Model : ESF80/26

Contact Now

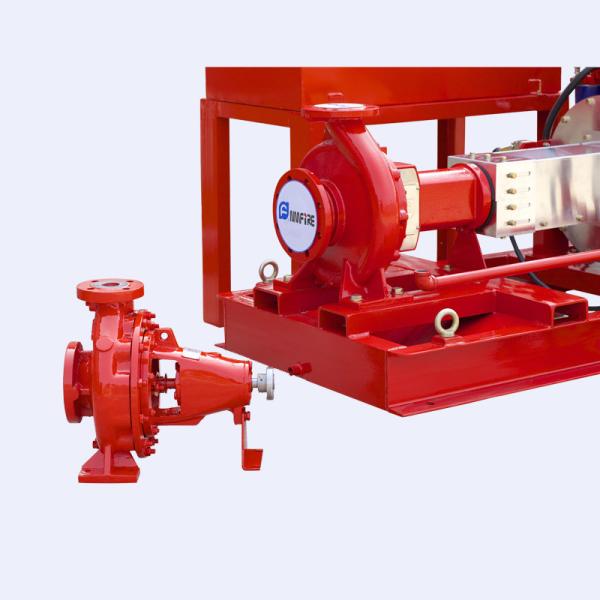

End Suction Fire Pump Group Fire Fighting NFPA20 Package UL FM For Large Hotels, Hospitals

The end suction pump set meets the NFPA20 standard, UL/FM Approved. Motor driven or diesel engine driven .Match Eaton or Tornatect controller.

Customize the pachage system.Our fire pump can be used in hotels, hospitals, airports and other buildings of the fire system.

Main Parameters:

Diesel Engine Pump Set ( Heat Exchanger)
Pump	NM FIRE(UL/FM)
Model	ESF80/20
Material
Casing	Ductile Cast iron
Impeller	Bronze
Shaft	SS420
Seal	Gland packing
Wear ring	Brass
Bearing	SKF
Engine	NM FIRE(UL) NM4-108
Controller	Eaton(UL/FM)

DESCRIPTION:

Applications

Large hotels, hospitals , schools,office buildings,supermarkets, commercial residential buildings, metro stations, railway stations, airports, kinds of transportation tunnels, petrochemical plants, thermal power plants, terminals, oil depots, large warehouses and industrial and mining enterprises,offshore platform(Pump material:Discharge head, Column pipe, shaft, impeller, suction bell—SS2205, Seal—Gland packing ,Guide bearing—Thordon) etc.

Product types

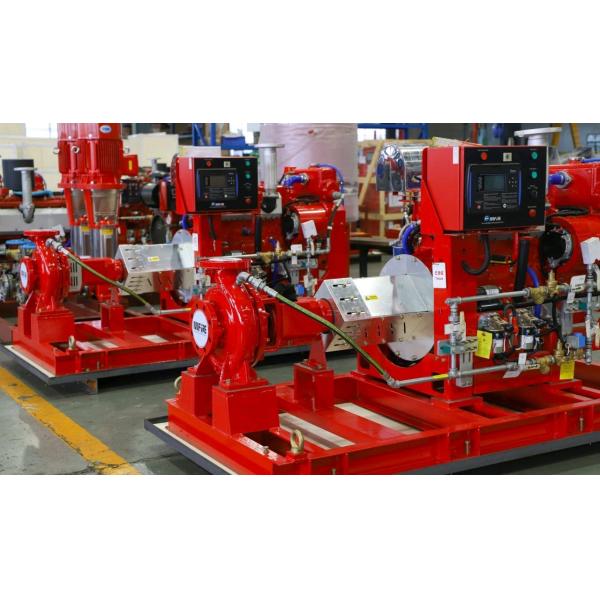

Electric motor driven fire pump group
Diesel engine driven fire pump group with air cooling & water cooling
NFPA20 Package

About Us

CNP NM Fire-fighting System Co.,Ltd

CNP NM Fire-fighting System Co.,Ltd is a leading manufacturer of fire pumps, diesel engines, controllers, diesel engine driven fire pump set, electric motor driven fire pump set, fire pump package system and containerized fire pump package system in accordance with domestic & international standards. We are a member of the National Fire Protection Association (NFPA) and the European Fire Sprinkler Network (EFSN). The technical team consists of a number of engineers and foreign experts who have more than 20 years of experience in research and development for global fire-fighting equipment. We can offer you a wide range of fire pumps and diesel engines which have gotten UL, FM(America), APSAD(France), SETSCO(Singapore) certificates that meet every fire protection needed.

NMFIRE is the first NFPA (National Fire Protection Association) member in China's pump industry and also the only Chinese company among the members of EFSN (European Fire Sprinkler Network). We are the first company in China to receive both UL and FM certifications and the only company in the world to manufacture UL/FM certified fire pumps and UL/FM diesel engines. Our company was a key contributor in the revision of China's fire pump industry standards. Our product technology and range in products are industry leading in both the domestic and global market place.

Our mission is to produce the highest standard products with the advanced technology to "Protect life, love and history" for the big world.

NFPA20 UL FM End Suction Fire Pump For Hospital

In addition to the above models, there are many model UL/FM testing in process.

Looking forward to your enquiry.

Standards

NFPA20, UL, FM, EN12845,CCCF

Performance Ranges

UL : Q: 100-750GPM H:70-152PSI

FM: Q: 100-750GPM H:70-152PSI

CCCF: Q:15-45L/S H:0.6-0.9Mpa

NFPA20: Q: 100-3000GPM H:40-200PSI

End suction Pump Model Chart

Rated Capacity	PUMP MODEL(UL)	Rated Net Pressure Range,	Approx. Speed,	Impeller Diameter, mm.
GPM (US)	PUMP MODEL(UL)	PSI	RPM	Max	Min
50	ESF40/20	76-111	2980	225	190
50	ESF40/20	108-157	3550	225	190
100	ESF40/20	72-109	2980	225	190
100	ESF40/26	100-138	2980	264	225
200	ESF50/20	72-99	2980	225	195
200	ESF50/20	102-142	3550	225	195
200	ESF50/26	105-140	2980	264	230
250	ESF50/20	69-99	2980	225	195
250	ESF50/20	101-141	3550	225	195
250	ESF50/26	99-136	2980	264	230
250	ESF65/20	113-152	3550	225	195
250	ESF65/20	86-107	2980	225	210
250	ESF65/26	119-147	2980	264	245
300	ESF65/20	112-152	3550	225	195
300	ESF65/20	86-107	2980	225	210
300	ESF65/26	119-147	2980	264	245
400	ESF65/20	108-150	3550	225	195
400	ESF65/20	83-104	2980	225	210
400	ESF65/26	119-141	2980	264	245
450	ESF65/20	105-148	3550	225	195
450	ESF65/20	80-102	2980	225	210
450	ESF65/26	114-138	2980	264	245
500	ESF65/20	101-145	3550	225	195
500	ESF65/20	77-99	2980	225	210
500	ESF65/26	111-135	2980	264	245
500	ESF80/20	90-100	2980	225	210
500	ESF80/20	129-142	3550	225	210
500	ESF80/26	116-138	2980	264	245
750	ESF80/20	87-98	2980	225	210
750	ESF80/20	127-142	3550	225	210

Five Advantages of CNP NM FIRE

  ①The late-mover advantage of products, we R&D better fire products than other Suppliers;  ②Have the most complete and all series of fire pump models;  ③Have listed diesel engines with self-owned brand--- NM FIRE；  ④Understand the technology of fire- fighting products and fire- fighting system better than other competitors and have better services；  ⑤Shorter delivery time.

NFPA20 UL FM End Suction Fire Pump For Hospital

FAQ

Q1.Do you have the UL-LISTED Fire Pump Sets?

Yes, We have the UL/FM and NFPA standard Fire Pump Sets.

Q2.Please quote the XXGPM@XXXPSI Pump without driver.

Sorry, pump are not sold separately, pumps and drives are sold together.

Q3.I need your motor drive End-suction/Split-casing fire pump, what information shold I sent to you ?

Sir/Madam,you can privide the Capacity, Heed, Voltage and Frequncy,we will make the quotation for you,If you need Jockey Pump or other accessories, please tell us together.

Q4.If I need your Diesel Engine Drive End-suction/Split-casing fire pump, what information shold I sent to you ?

You can sent the Capacity Heed, Temperature and Altitude (temperature and altitude will affect the performance of diesel engines).If you need Jockey Pump or other accessories, please tell us Voltage and Frequncy or accessories together.

Q4.I need the UL Vertical Tubine Fire Pump Set ,please sent me the price.

For the motor Diver Vertical Tubine Fire Pump Set: you shoul give us the Capacity, Heed, Voltage Frequncy and the tank deep.

For the Diesel Engine Drive Vertical Tubine Fire Pump Set:you should give us the Capacity, Heed and the tank deep.

If you need Jockey Pump or other accessories,please tell us together.

Q5.May I ask what is the lead time of this fire pump and the jockey piump if ever we order them from you?

Under normal cicumstance,75days ,we will notify the delivery date after receiving the deposit.

Q6.Please advise if you can also send me the cost for the freight?

Pls. confirm the model first,then we wil estimate estimate. The Fire Pump Sets are customized production, actual packaging size and estimated size will be different.

Service:

 1. Reply within 24 hours. 2. High-quality products and the most reasonable price 3. Data and chemical technology support.
